CNC Machining Services: Thin-Wall and Deep-Cavity Deformation Control

Thin-wall and deep-cavity components are among the more demanding parts in CNC Machining Services because material removal can significantly change structural rigidity during machining. Even when the programmed dimensions are correct, cutting force, clamping force, tool deflection, residual stress and heat can cause a component to deform during or after machining. Understanding these mechanisms helps engineers select suitable wall thicknesses, machining sequences, fixtures, tools and inspection methods.

Why Thin-Wall CNC Parts Are Difficult to Machine

Thin-wall components have a lower structural stiffness than solid or thick-section parts. As material is removed from the surrounding area, the remaining wall becomes increasingly flexible.

During cutting, the tool applies a force to the workpiece. A rigid component can resist this force with relatively little movement. A thin wall, however, may deflect away from the cutting tool. The machine may continue following the programmed toolpath while the physical wall moves slightly under cutting load.

After the cutting force disappears, the wall can partially return toward its original position. This creates a common machining problem: the measured dimension during cutting may appear different from the final dimension after the part is unclamped.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

How Wall Thickness Influences Machining Stability

Wall thickness is one of the first geometry factors that should be reviewed during CNC process planning. A thin wall does not automatically mean that a component cannot be machined, but thinner structures generally require greater control of cutting conditions and workholding.

As the wall becomes thinner, the available material supporting the cutting force decreases. The same cutting operation that is stable on a thick wall may produce vibration or deflection on a thin wall.

Wall thickness should therefore be evaluated together with:

• Wall height

• Wall length

• Material type

• Corner radius

• Pocket depth

• Adjacent supporting structures

• Clamping position

• Cutting direction

• Tool diameter

A tall, narrow wall is generally more sensitive to deformation than a short wall with strong supporting ribs. The same nominal wall thickness can therefore behave differently depending on the complete geometry.

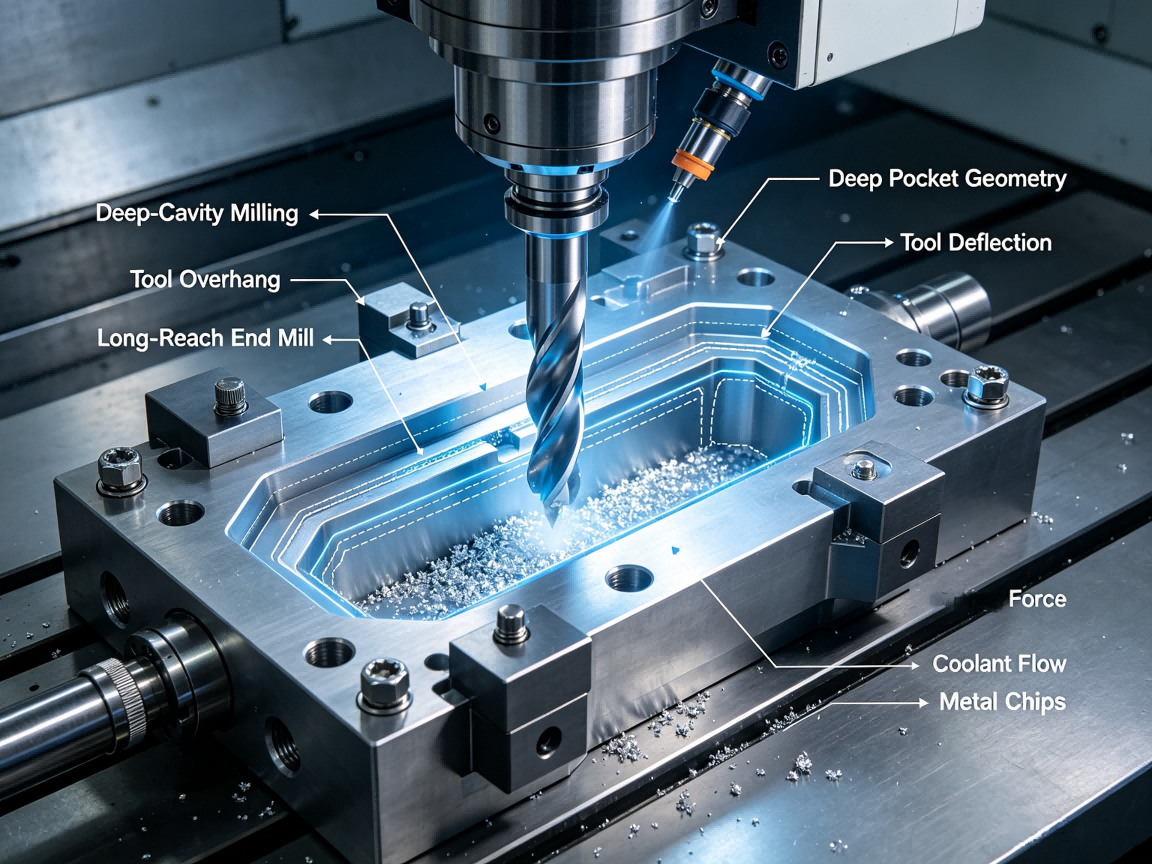

Deep-Cavity Machining Creates Additional Challenges

Deep cavities present a different but related machining problem. As cavity depth increases, the cutting tool may need greater reach to access the bottom and side walls.

A long-reach tool has greater flexibility than a short tool. Tool deflection can increase as tool overhang increases, especially when cutting difficult materials or when aggressive cutting parameters are used.

Deep cavities may also restrict chip evacuation and coolant access. Chips that remain inside the cavity can interfere with the cutting process, recut material and increase local heat.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

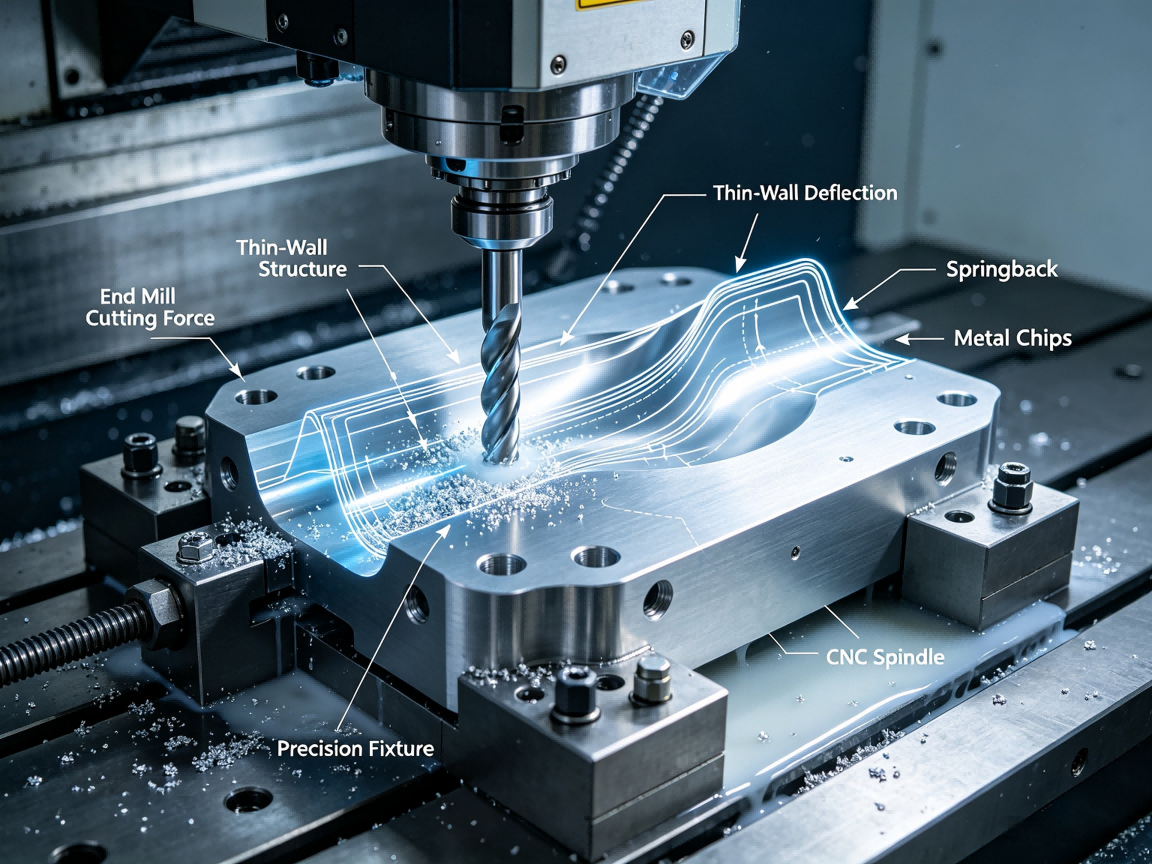

Cutting Force and Thin-Wall Deflection

Cutting force is one of the primary mechanical causes of thin-wall deformation. When a rotating tool removes material, the cutting edge applies force to the workpiece. The magnitude and direction of this force vary according to material, tool geometry, feed, cutting depth, spindle speed and engagement.

For a rigid component, this force may have little visible effect. For a flexible wall, the same force can produce measurable displacement.

This creates a feedback problem. If the wall moves away from the cutting tool, the actual material removal may be less than expected. Once the cutting force is removed, the wall may move back, leaving a dimension different from the programmed target.

For this reason, simply changing the final tool offset may not solve a thin-wall deformation problem. The underlying issue may be excessive cutting force or insufficient structural support.

Factors That Influence Cutting Force

• Workpiece material

• Tool diameter

• Tool geometry

• Number of cutting edges

• Feed per tooth

• Depth of cut

• Radial engagement

• Spindle speed

• Tool wear

• Coolant conditions

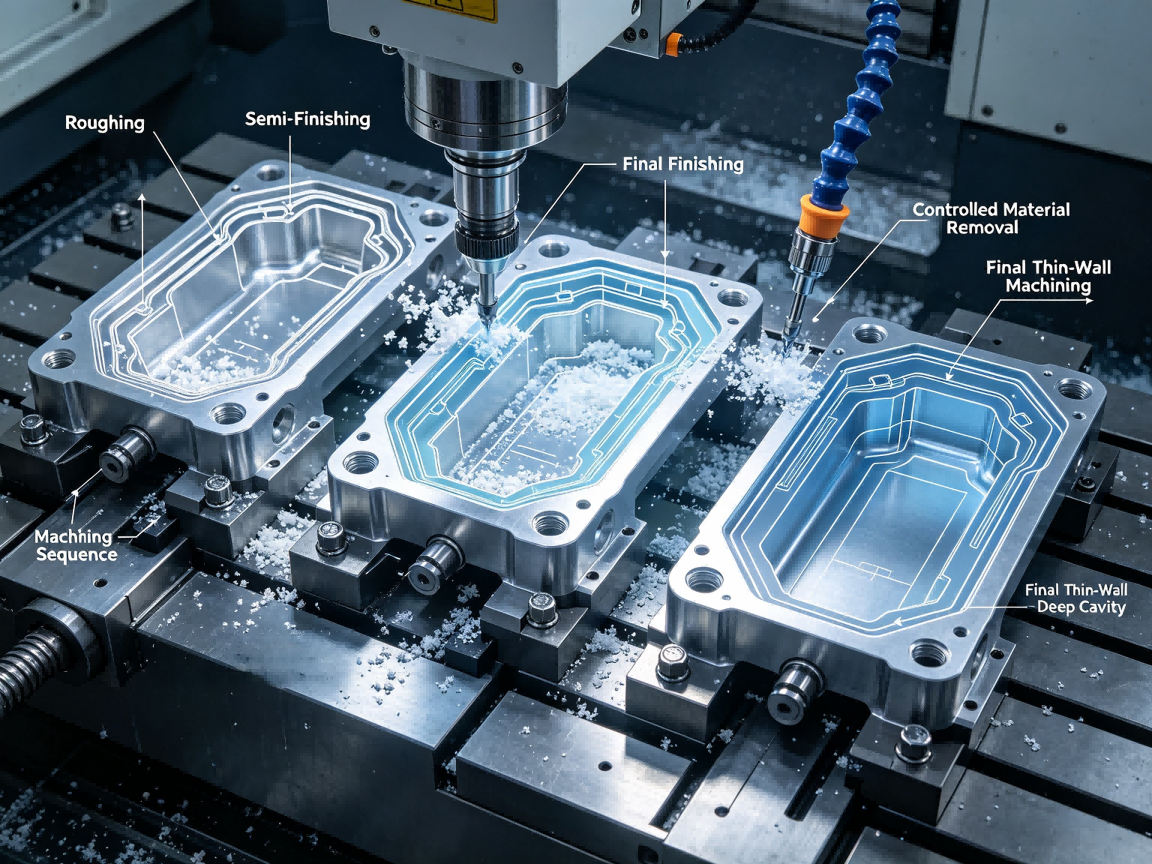

Why Roughing and Finishing Should Be Separated

A common strategy for difficult thin-wall components is to separate heavy material removal from final dimensional machining.

During roughing, a larger amount of material is removed. This stage can generate higher cutting forces and greater heat. The objective is primarily to remove bulk material while leaving a controlled amount of stock for later operations.

Finishing can then use lighter cutting conditions to establish the final surface and dimensions after the part has reached a more stable machining condition.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

The exact sequence depends on the material, component geometry, machine, fixture and required tolerances. Some components may benefit from additional semi-finishing or stress-relief stages.

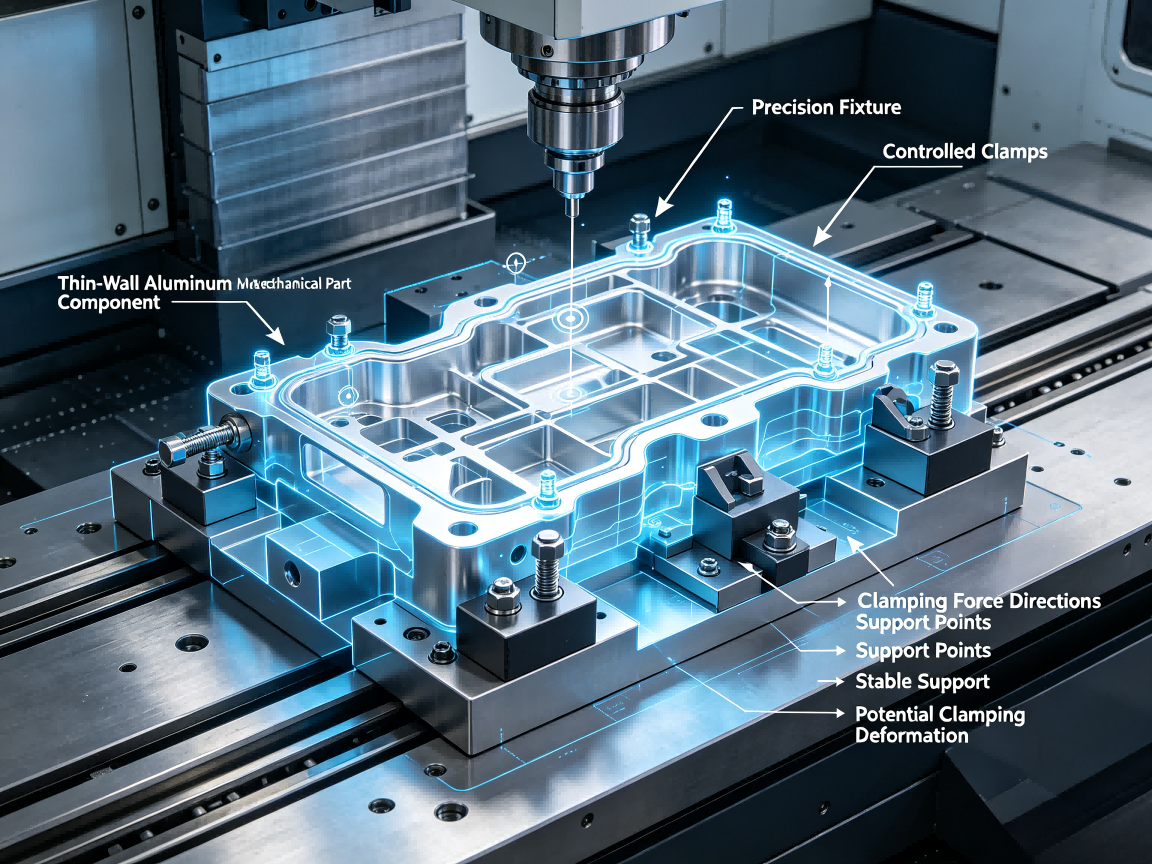

How Clamping Force Can Deform Thin-Wall Parts

Workholding is essential for stable CNC machining, but excessive clamping force can create its own dimensional problem.

When a flexible component is clamped, the fixture may physically distort the workpiece. While the part remains clamped, the CNC machine may cut the distorted geometry accurately relative to the current position.

After the clamps are released, the workpiece can partially recover its original shape. The final unloaded geometry may therefore differ from the geometry measured while the component was still under clamping force.

This effect is especially important for:

• Thin aluminum housings

• Large machined plates

• Thin-wall brackets

• Lightweight aerospace-style structures

• Large pockets with narrow remaining walls

• Precision covers and shells

Workholding should provide sufficient rigidity without applying unnecessary deformation to the component.

Fixture Design for Thin-Wall CNC Machining

A suitable fixture can support the workpiece close to the cutting area and distribute clamping forces across structurally stable regions.

The fixture design should be considered during DFM rather than treated as a separate manufacturing detail. If a component has extremely thin walls or large unsupported areas, the fixture may need additional supporting features.

Important Fixture Considerations

• Locate the component from functional or stable reference surfaces.

• Apply clamping force near structurally strong areas.

• Avoid concentrated force on flexible walls.

• Provide tool clearance around machining features.

• Consider support beneath thin sections.

• Maintain access for inspection probes.

• Allow adequate chip and coolant flow.

• Consider how the part will behave after unclamping.

Residual Stress and Post-Machining Warpage

Not all deformation is caused by cutting force or clamping. Internal residual stress within the raw material can also contribute to dimensional changes during CNC machining.

When material is removed, the original balance of internal stress can change. One side of a component may contain more residual stress than another, and removing material can allow the workpiece to move toward a new equilibrium.

This is one reason why a component can remain stable during rough machining but deform after substantial material removal or after final unclamping.

Material condition is therefore an important part of CNC Machining Services for large or thin-wall components.

Machining Sequence for Thin-Wall and Deep-Cavity Parts

The machining sequence should be planned to maintain as much structural support as practical until the later stages of production.

A typical strategy may include establishing reliable reference surfaces, roughing the major material volumes, maintaining temporary supporting material where appropriate, semi-finishing critical geometry and completing the final thin-wall features toward the end of the process.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

Tool Selection for Thin-Wall and Deep-Cavity Machining

Tool selection influences both cutting force and accessibility. A tool that is too small may require excessive machining time and increase the number of passes. A tool that is too large may not enter narrow cavities or reach internal corners.

For deep cavities, tool overhang is particularly important. A longer tool may provide access but can also increase deflection and vibration.

For thin-wall machining, tool geometry and cutting-edge condition should be selected to maintain stable cutting with appropriate chip formation.

Tool selection should consider:

• Tool diameter

• Tool length

• Flute geometry

• Number of flutes

• Tool material and coating

• Workpiece material

• Cavity depth

• Required surface finish

• Available spindle performance

How Cutting Parameters Affect Thin-Wall Stability

Cutting parameters should be selected as a complete system rather than adjusted independently. Increasing feed, depth of cut or radial engagement can increase material-removal rate, but the resulting cutting load must remain compatible with the rigidity of the workpiece.

For a flexible wall, a machining strategy that is efficient on a solid block may be unsuitable. Lower-force finishing passes, appropriate step-over and controlled engagement can help reduce deflection.

pemVerify all parameters against current test reports and applicable standards before use in specifications.emp

Thermal Effects During Thin-Wall Machining

Heat generated during machining can influence dimensional stability. The workpiece, cutting tool and machine structure can all experience temperature changes during extended cutting operations.

Thin sections can be particularly sensitive because they have less thermal mass. If a component becomes warmer during machining, its dimensions can temporarily change. After cooling, the measured dimension may shift.

For precision components, temperature should therefore be considered when establishing inspection procedures. Consistent measurement conditions are especially important when comparing results across different machining stages.

Common Thin-Wall CNC Machining Failures

Wall Thickness Is Inconsistent

Uneven stock removal, tool deflection or workpiece movement can cause one section of the wall to be thicker than another. The first step is to determine whether the variation follows a toolpath direction, fixture location or geometric pattern.

Part Changes Shape After Unclamping

This often indicates that clamping deformation or internal residual stress is contributing to the final geometry. Measuring the component while clamped and after unclamping can help distinguish these mechanisms.

Thin Wall Vibrates During Finishing

Vibration may result from low structural stiffness, excessive tool overhang, unsuitable cutting parameters or insufficient support. Changing tool orientation or machining sequence may also help.

Deep Cavity Dimensions Drift

Long tools can deflect under cutting load, particularly when machining deep pockets. Tool length, cutting engagement, tool wear and cavity accessibility should be reviewed together.

Surface Finish Is Poor Near Thin Sections

Tool vibration and workpiece movement can produce visible surface marks. A finishing strategy with lower cutting load and better workpiece support may improve surface consistency.

Engineering Checklist for Thin-Wall and Deep-Cavity CNC Machining

• Review minimum wall thickness during DFM.

• Identify unsupported walls and flexible structures.

• Check cavity depth and required tool reach.

• Evaluate fixture support before machining.

• Avoid excessive clamping force.

• Plan roughing and finishing as separate operations.

• Maintain structural support as long as practical.

• Minimize unnecessary tool overhang.

• Control cutting force on final thin-wall passes.

• Consider residual stress in the raw material.

• Monitor thermal conditions during precision machining.

• Inspect critical dimensions after unclamping.

• Verify final geometry under consistent inspection conditions.

How to Evaluate CNC Machining Services for Thin-Wall Parts

When selecting CNC Machining Services for thin-wall or deep-cavity components, customers should evaluate more than machine specifications. The supplier should be able to explain how the part will be fixtured, how material will be removed, how tool access will be controlled and how final deformation will be measured.

For difficult components, DFM review before production can identify unsupported walls, excessive cavity depth, difficult tool access and other geometry-related risks. Process planning, fixture design, machining sequence and inspection should then be considered as one manufacturing system.

Dongguan city Jifan Precision Machinery Co., Ltd provides CNC machining services with in-house production, automated Machining Capabilities, prototype development and customized manufacturing. Actual machining strategies and achievable tolerances should be confirmed against the customer's drawings, material specifications and inspection requirements.

FAQ About Thin-Wall CNC Machining Services

Why do thin-wall CNC parts deform after machining?

Thin-wall deformation can result from cutting force, clamping force, tool deflection, residual stress, thermal effects or a combination of these factors. The cause should be identified from the actual part geometry and machining process.

Can CNC machining produce very thin walls?

Thin walls can be machined, but practical capability depends on material, wall height, geometry, machine rigidity, tooling, workholding and required tolerance. The complete geometry should be reviewed before production.

How can clamping deformation be reduced?

Clamping deformation can be reduced by supporting the workpiece properly, locating it on stable reference surfaces and applying sufficient but controlled clamping force. Fixture design should account for the unloaded condition of the finished part.

Why are deep cavities difficult to machine?

Deep cavities often require long-reach tools, which can increase tool deflection and vibration. Narrow cavity openings can also restrict tool diameter and make chip evacuation more difficult.

Does reducing cutting speed always prevent thin-wall deformation?

Not necessarily. Thin-wall stability depends on the complete cutting system, including feed, depth of cut, radial engagement, tool geometry, tool overhang, workpiece rigidity and workholding. A single parameter should not be changed without considering the overall process.

Should thin-wall parts be inspected immediately after machining?

Inspection timing depends on the material and process. If thermal effects, clamping deformation or residual stress may influence the final geometry, the component should be allowed to reach an appropriate stable condition before final verification.
